| Item | Transmitter: 7161 | Receiver: 3191+3192 |
| Antenna Mode | 2T2R | |
| Operating Frequency | 1420-1530MHZ | |
| Output Power | 2W(33dBm) | |
| Transmission Distance | 1200m(30Mbps) | |
| Video Resolution |
SDI:4096x2160 23.98/24/25/29.97/30/50/59.94/60Hz 3840x2160 23.98/24/25/29.97/30/50/59.94/60Hz 1080P 60/59.94/50 HZ(A&B) 1080I 60/59.94/50 Hz 1080P 30/29.97/25/24/23.98 Hz 1080PsF 29.97/25/24/23.98 Hz 720P 60/59.94/50 Hz |
|
|
HDMI:4096x2160 23.98/24/25/29.97/30/50/59.94/60Hz 3840x2160 23.98/24/25/29.97/30/50/59.94/60 Hz 1080P 60/59.94/50/30/29.97/25/24/23.98 Hz 1080I 60/59.94/50 Hz 720P 60/59.94/50 Hz |
||

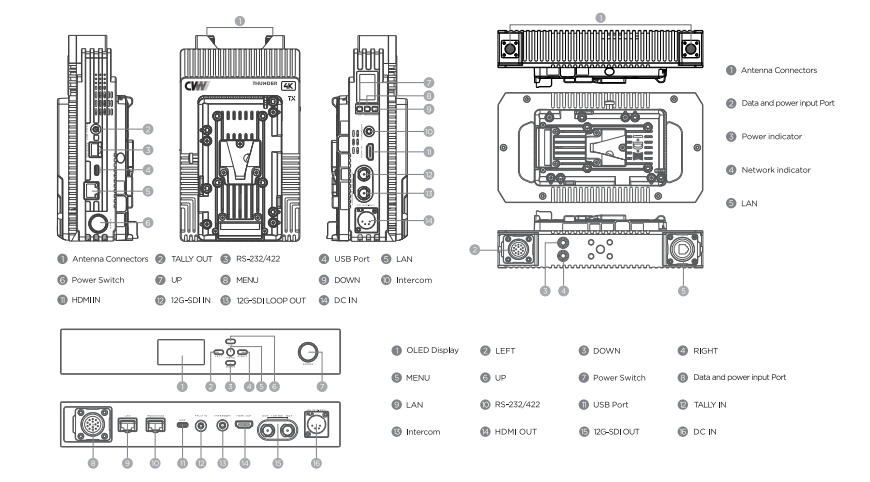

| Interfaces |
HDMl input,12G-SDlinput,12G-sDlloopout,intercom, LAN port, RS232/422,Tally output, power port |
HDMloutput,12G-SDloutput x2,intercom,LAN port. RS232/422,Tallyinput, power port |
| Operating Voltage | DC 9V~36V | |
| Temperature | -10°C~55°C;Humiditys95%(No Condensation) | |
| Product Size | 117(L)x46(W)x192(H)mm |
3191 Size:260(L)x42(VV)x160,3(H)mm 3192 Size:220(L)x45(W)x127(H)mm |
